ETP & STP Technologies for Efficient Wastewater Treatment

Explore biological wastewater treatment technologies including MBBR, MBR, SBR, and ASP, with technology selection based on wastewater characteristics, treatment capacity, required effluent quality, and operational requirements.

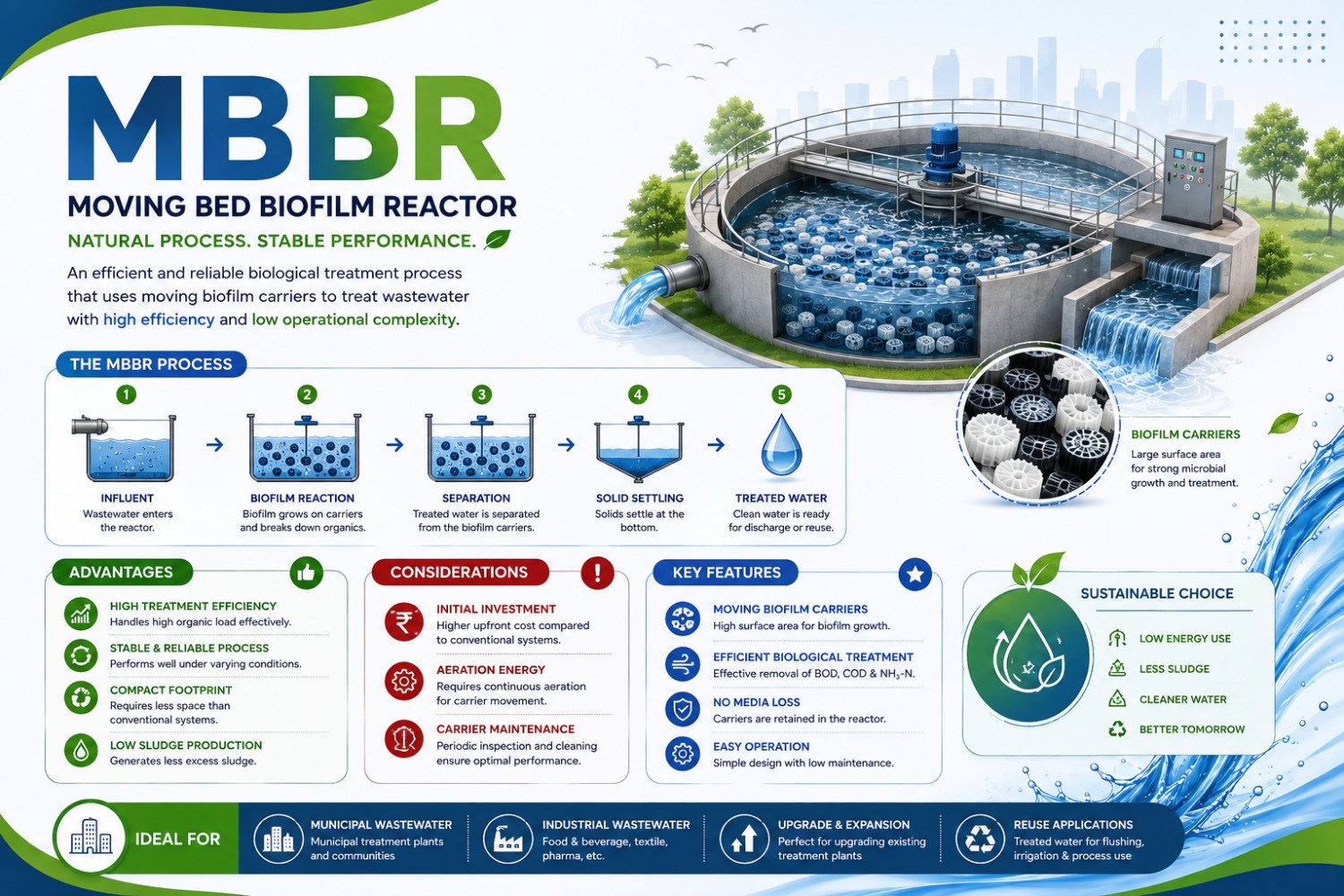

MBBR technology for ETP and STP wastewater treatment systems

Click image to enlarge

MBBR Technology

Moving Bed Biofilm Reactor (MBBR)

Moving Bed Biofilm Reactor (MBBR) is an efficient biological wastewater treatment technology that uses specially designed carrier media within an aeration tank to support the growth of microorganisms. As wastewater passes through the reactor, the microorganisms attached to the media break down organic pollutants, helping reduce BOD and COD while maintaining a compact and efficient treatment process. MBBR can be configured according to wastewater characteristics, treatment capacity, and required effluent quality.

Discuss MBBR for Your Project
MBR Technology

Membrane Bioreactor (MBR)

Membrane Bioreactor (MBR) combines biological wastewater treatment with advanced membrane filtration to achieve high-quality treated water. The biological process breaks down organic pollutants, while membranes effectively separate suspended solids and microorganisms from the treated water. MBR provides reliable treatment performance in a compact footprint and is well suited for applications requiring high effluent quality and potential water reuse.

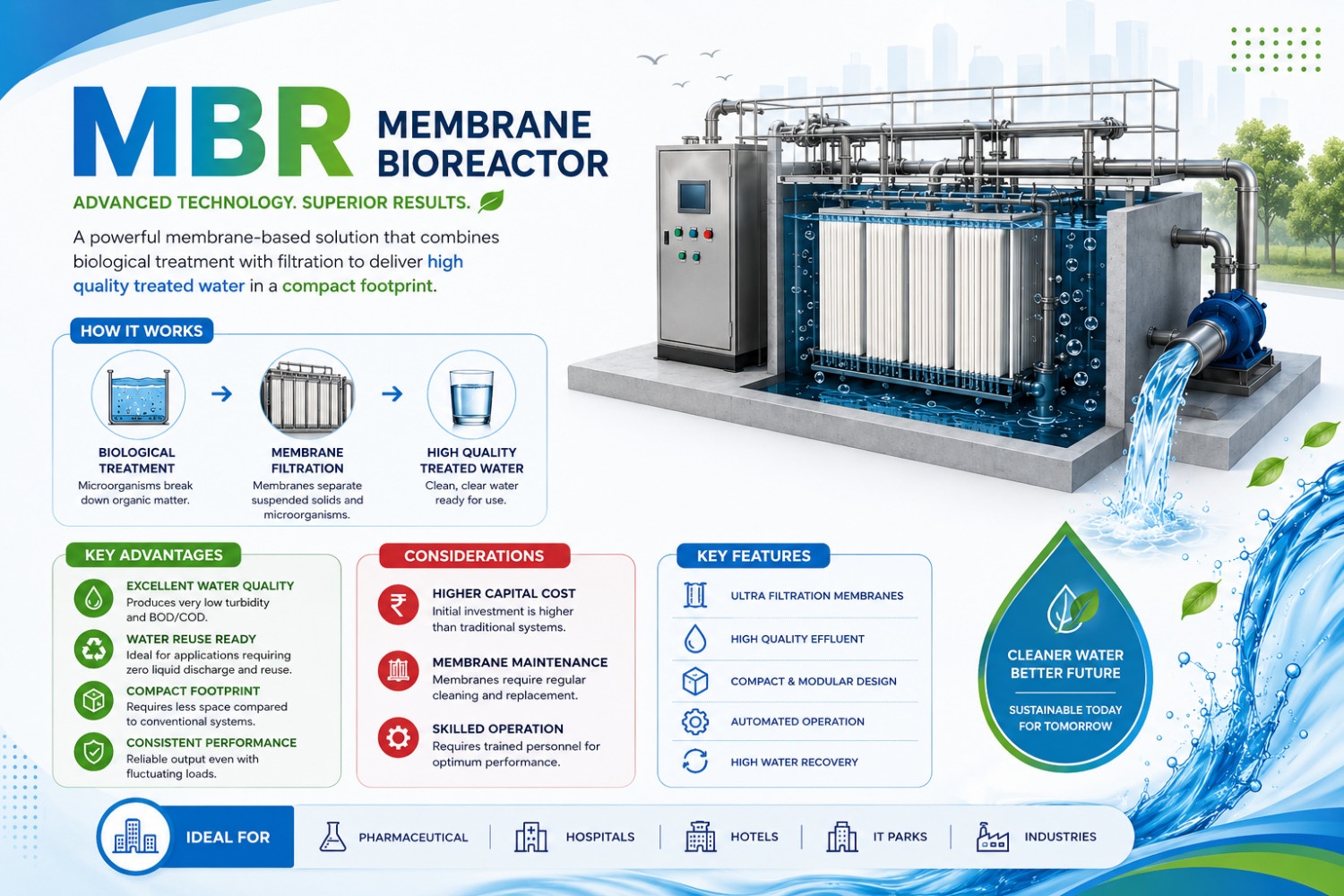

Membrane Bioreactor technology for advanced ETP and STP wastewater treatment and water reuse systems

Click image to enlarge

Explore MBR Solutions

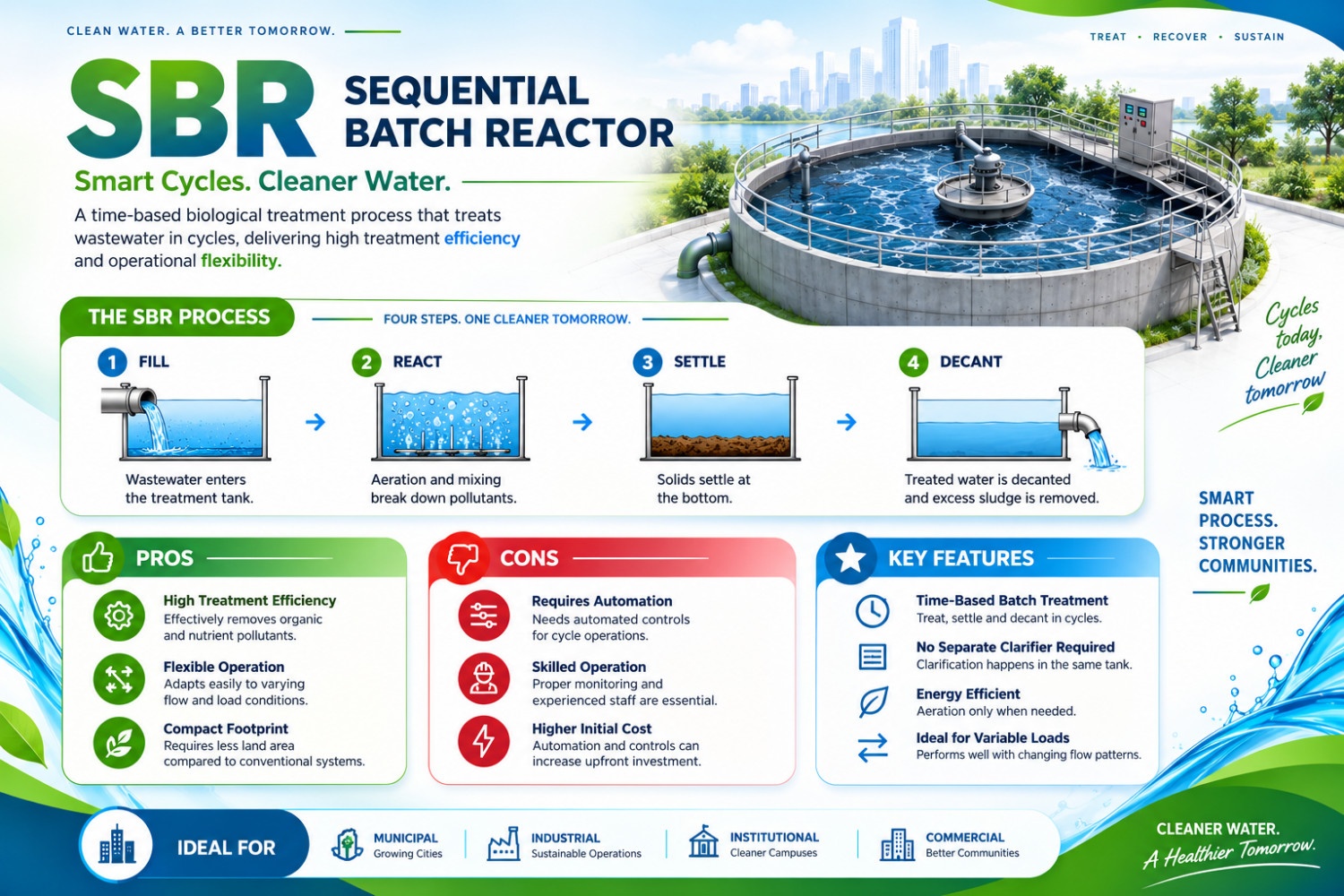

Sequencing Batch Reactor technology for ETP and STP wastewater treatment systems

Click image to enlarge

SBR Technology

Sequencing Batch Reactor (SBR)

Sequencing Batch Reactor (SBR) is a biological wastewater treatment technology that performs treatment through controlled cycles within a single reactor. The process typically includes filling, aeration, settling, and decanting stages, allowing biological treatment and solid separation to take place in the same tank. SBR offers flexible operation and can be adapted to varying wastewater flows and treatment requirements.

Discuss SBR Requirements
ASP Technology

Activated Sludge Process (ASP)

Activated Sludge Process (ASP) is a widely established biological wastewater treatment technology that uses aeration and activated microorganisms to break down organic pollutants in wastewater. The process maintains an active microbial population in the aeration tank, followed by solid-liquid separation to produce treated effluent. ASP is suitable for a wide range of wastewater treatment applications where reliable and well-established biological treatment is required.

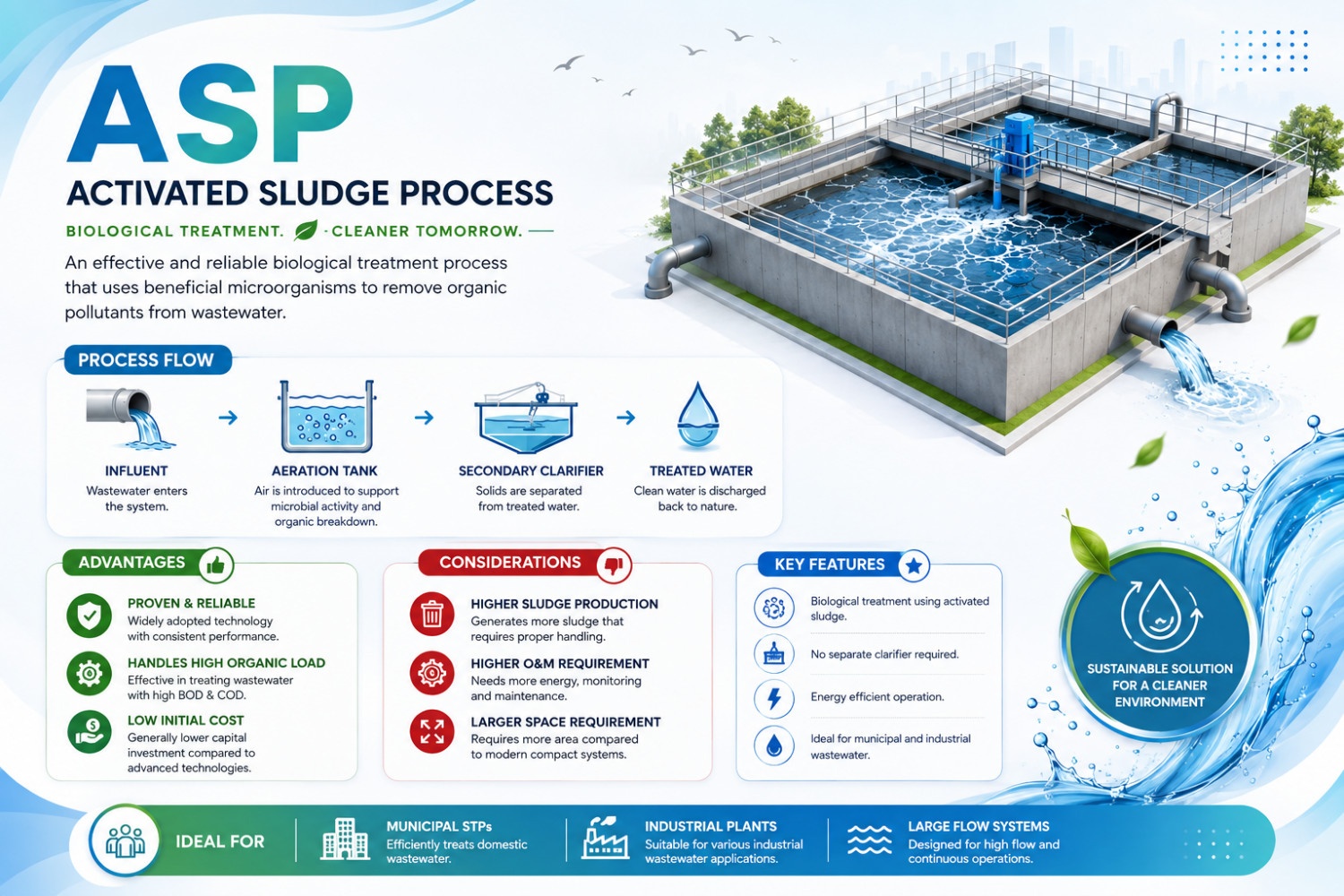

Activated Sludge Process technology for ETP and STP wastewater treatment systems

Click image to enlarge

Talk to Our Treatment Experts

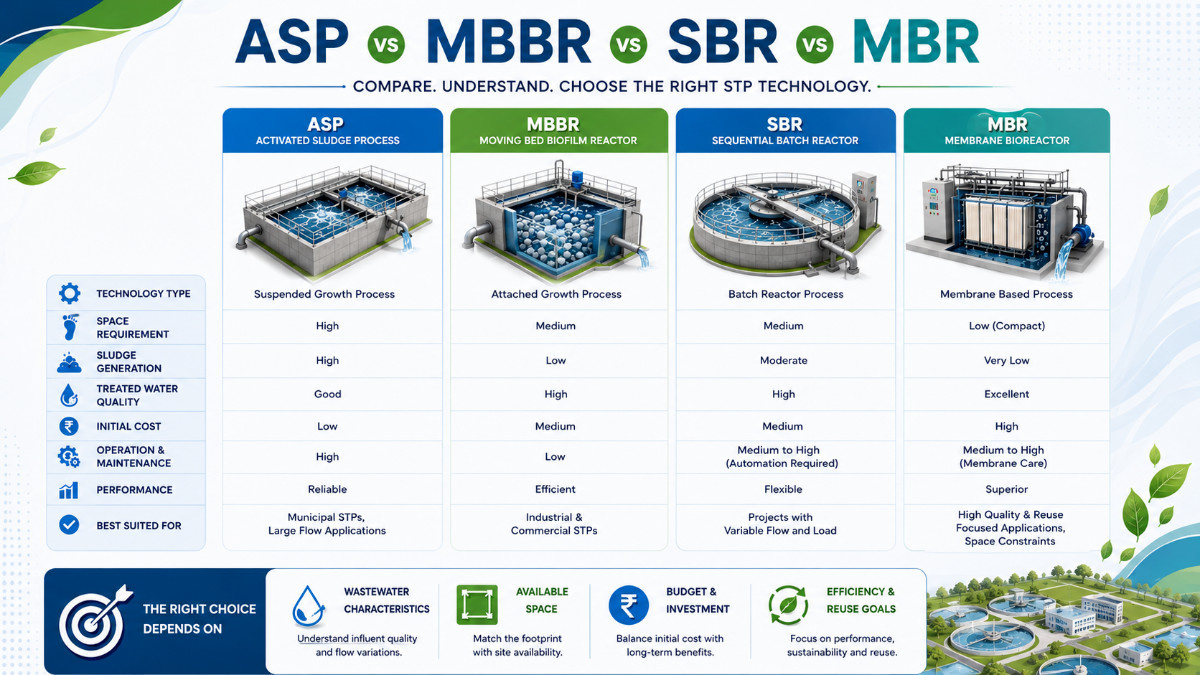

Biological wastewater treatment technology comparison of MBBR, MBR, SBR and ASP systems

Click image to enlarge

Comparison Guide

Which Biological Treatment Technology Should You Choose?

MBBR, MBR, SBR, and ASP each offer different approaches to biological wastewater treatment. The right technology depends on factors such as wastewater characteristics, required effluent quality, treatment capacity, available space, and operational requirements.

Our team evaluates your specific wastewater and project requirements to help identify a suitable treatment technology for efficient and reliable operation.

Find the Right Treatment Technology
Discuss Your Project

Need Help Selecting the Right Treatment Technology?

Discuss your wastewater treatment requirements with our team to identify a suitable technology based on your wastewater characteristics, treatment objectives, capacity, and operational needs.
